52 ft 11 in

Working Height

500 lbs

Platform Capacity

6,664kg

Weight

A46JRT

The class-leading Snorkel A46JRT articulating boom lift delivers precise reach and powerful rough terrain performance. Its up-and-over capabilities provide exceptional maneuverability with an articulated jib as standard for extended reach. A tight turning radius and zero tailswing makes the A46JRT a flexible and versatile machine for hard-to-reach places.

Max. working height
52 ft 11 in
Max. platform height
46 ft 11 in
Max. horizontal reach
24 ft 11 in
Clearance height at max. outreach
25 ft 2 in
Platform size
39 in x 72 in
Chassis width
6 ft 10 in
Overall length
18 ft 8 in
Stowed height
7 ft 2 in
Ground clearance
13 in
Platform capacity (SWL)
500 lbs
Max. drive height
46 ft 11 in
Max. wind speed
28 mph
Max. drive speed (elevated)
0.8 mph
Max. drive speed (stowed)
4.25 mph
Raise / lower time
101 / 98 seconds
Gradeability
45%
Jib length
5 ft
Jib arc
140°
Platform rotation
160°
Superstructure rotation
360° non-continuous
Tailswing
0 in
Inside turning radius
2 ft 8 in
Outside turning radius
10 ft 5 in
Tires
Foam filled lug 355/55D625
Controls
Proportional
Drive system
4 wheel drive
Power source
Kubota V1505 24.9hp diesel – Tier 4 Final
Weight
16,620 lbs
Specifications subject to change without notice. The equipment hereunder have been subject to limited testing, and any performance specifications and representations are the result of limited testing. Photos and diagrams are shown for illustrative purposes only. Snorkel makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its equipment for any particular purpose. It is the Buyer’s responsibility to independently determine suitability of any equipment or parts, and to test and verify the same. Refer to appropriate Snorkel operator’s manual for detailed instructions on the proper use and maintenance.
Last Updated
12/2021
  • Snorkel Guard™ secondary guarding system
  • Multi-function proportional controls
  • Oscillating front axle
  • Tri-entry platform
  • Foam filled lug tires
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Tilt alarm
  • Horn
  • Drive motion alarm
  • Flashing amber light
  • Platform overload system
  • Foam filled tires
  • 2 year parts & labor, 5 year structural warranty
1.52m aluminum platform with swing gate
AC generator 110V/240V 2kW
Aircraft Package
Airline to platform
Cold Weather Package
Deluxe Aircraft Package
Environmental hydraulic oil
Extreme Cold Weather Package
Extreme Environment Package
Glazier Package
Light package
Non-marking tires
Personal fall arrest system
Pipe Rack
Special paint colors
Tool tray
Utility Package

Specifications (PDF)

中文 Deutsch English Français 日本語 Español

Snorkel GuardTM Brochure (PDF)

English

Lifting Capacities ENGLISH Metric

English

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Specification Sheet (Imperial)

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

FIND A RESELLER
Add to Quote
VIDEO
Español
PHOTO GALLERY

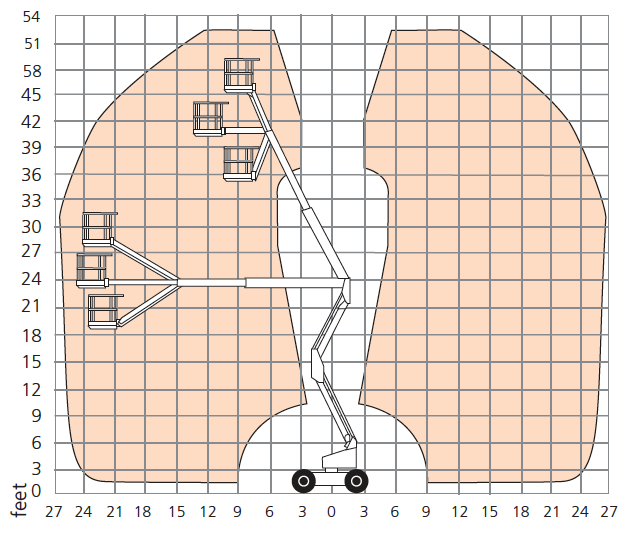

The Snorkel A46JRT articulated boom provides a superb working envelope

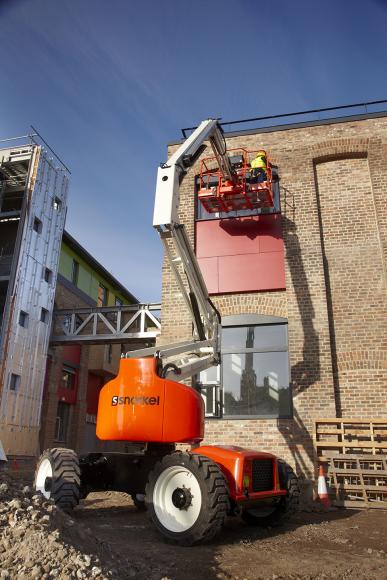

High grip tires can tackle all types of terrain

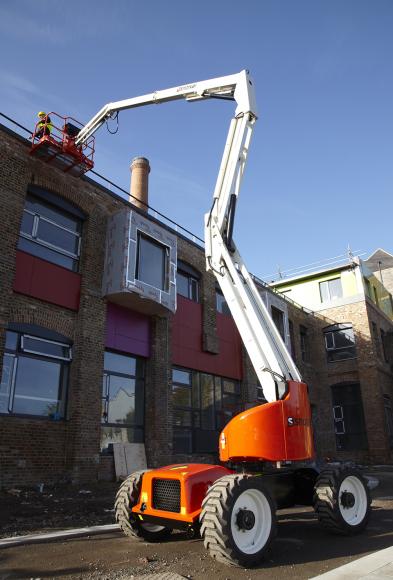

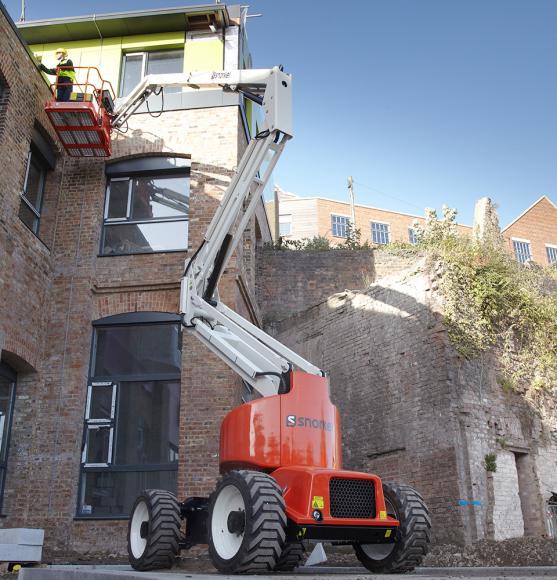

The A46JRT is ideal for jobs that require up-and-over capabilities and an excellent outreach

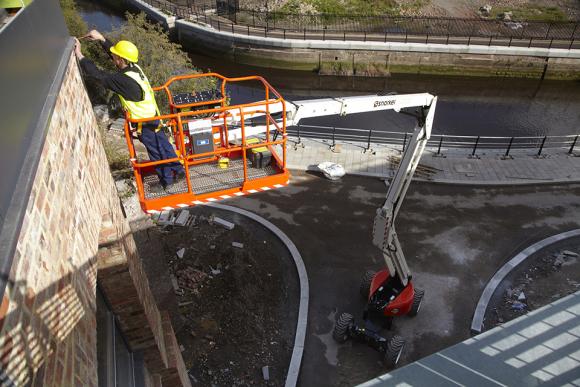

The Snorkel A46JRT offers a spacious tri-entry platform

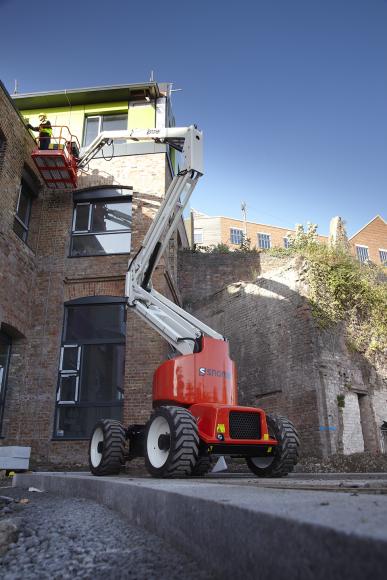

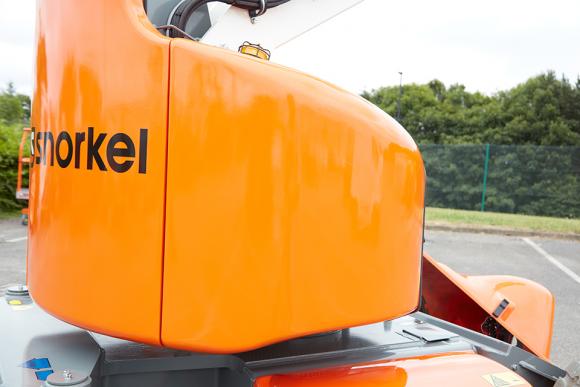

Zero tailswing means the lift can be easily maneuvered, even when elevated

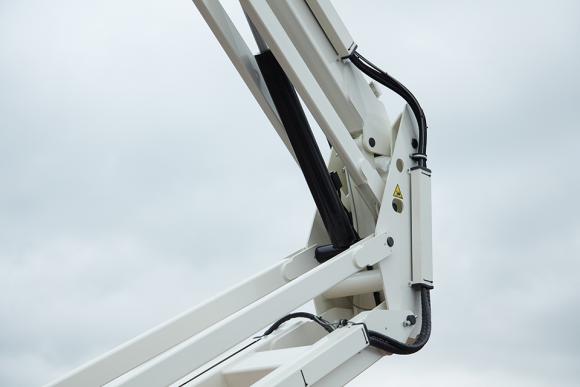

Robust steel articulated boom for a long working life

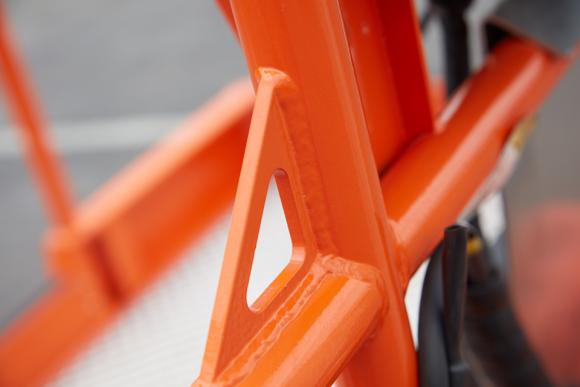

Lanyard attachment points are built-in to the platform rails for maximum ease of movement for the operator

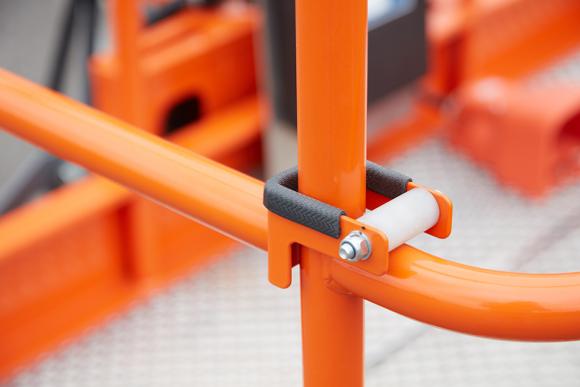

Tri-entry platform includes drop-bar rails
The Snorkel A46JRT articulated boom provides a superb working envelope
High grip platform for all weather conditions
