16.3m

Working Height

227kg

Platform Capacity

7,540kg

Weight

A46JRTE

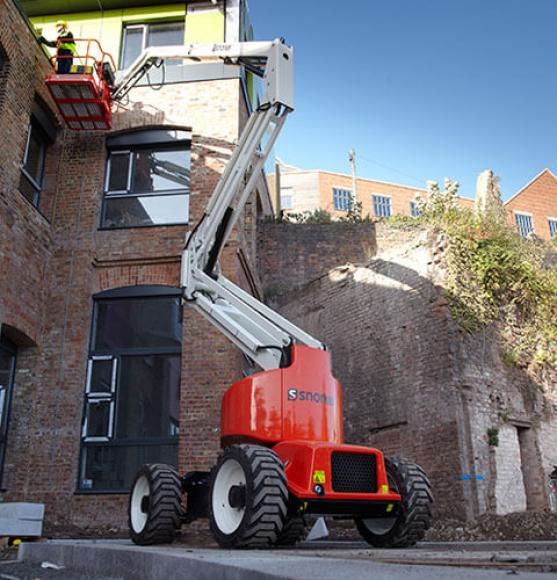

The electric version of the Snorkel A46JRT articulating boom lift, the A46JRTE offers clean performance and quiet operation from lithium-ion batteries. This fully electric model delivers the same rough terrain capability from battery power. Designed to be versatile, the A46JRTE has superb maneuverability and can work indoors

Max. Working Height
16.3m
Max. Platform Height
14.3m

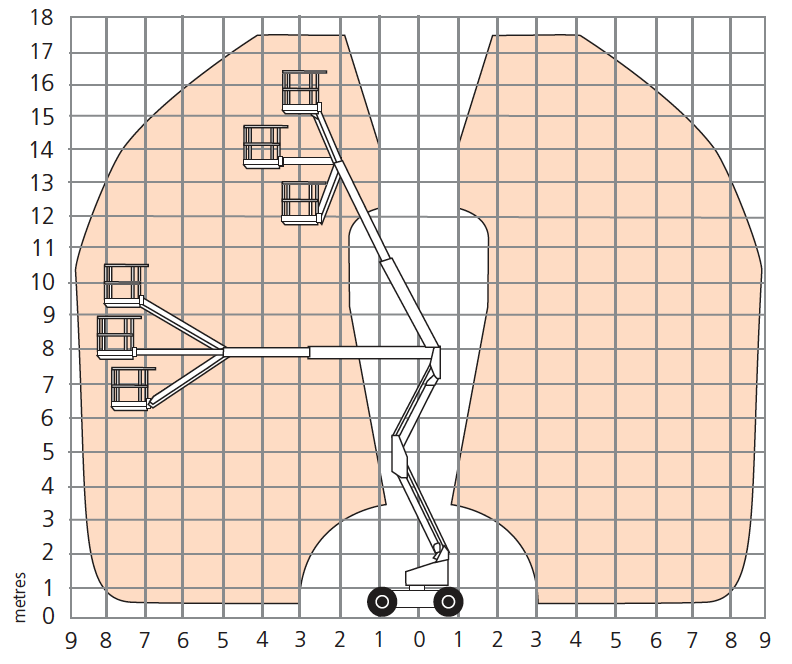

Max. Working Outreach
7.35m
Clearance height at Max Outreach
7.67m
Platform Size
1.0m x 1.83m
Chassis Width
2.1m
Overall Length
5.7m
Stowed Height
2.16m
Ground Clearance
330mm
Platform Capacity (SWL)
227kg
Max. Drive Height
14.3m
Max. Wind Speed
12.5m/s
Max. Drive Speed (stowed)
6.8km/h
Max. Drive Speed (elevated)
1.3km/h
Jib Length
1.5m
Jib Arc
140º
Platform Rotation
160º
Turret Rotation
360º non-continuous
Tailswing
0m
Raise / lower Time
101 / 98 seconds
Gradeability
45%
Inside Turning Radius
0.8m
Outside Turning Radius
3.1m
Tyres
High grip, foam-filled 355/55D625NHS 17.5
Controls
Proportional
Drive System
4 wheel drive
Power Source
17.25kWh Li-ion batteries with integrated BMS
Operating Temperature
(-) 25ºC to (+) 60ºC
Charger
High frequency smart on-board 50A battery charger
Motor
AC electric motor
Weight
7,540kg
  • Three lithium-ion battery systems 17.25kWh
  • Snorkel Guard™ secondary guarding system
  • Tri-entry platform
  • Drive motion alarm
  • Multi-function proportional controls
  • Oscillating front axle
  • Power line to platform
  • Zero tailswing
  • Hour meter & on-board diagnostics display
  • Non-marking foam filled tyres
  • 2000 charging cycles/2 year** lithium battery warranty
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

** Whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions.Batteries at the end of their life to be returned to Snorkel for recycling.

1.52m aluminium platform with swing gate
Additional 5.75kWh battery system
Aircraft Package
Airline to platform
Deluxe Aircraft Package
Environmental hydraulic oil
Extreme Environment Package
Light package
Snorkel OnSite™ Telematics
Special paint colours
Tool tray
Utility Package

Snorkel GuardTM Brochure (PDF)

English

Lifting Capacities ENGLISH Metric

English

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Specification Sheet (Imperial)

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
