8.1m

Working Height

215kg

Platform Capacity

2,590kg

Weight

MB20J

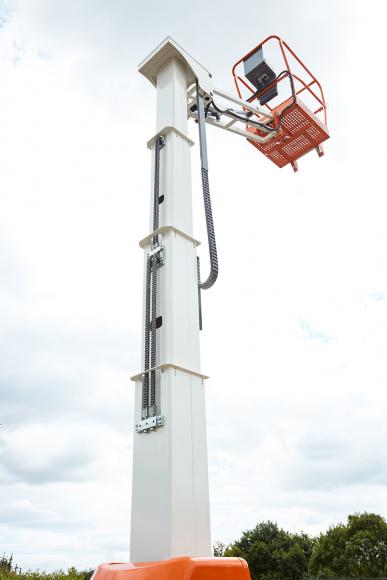

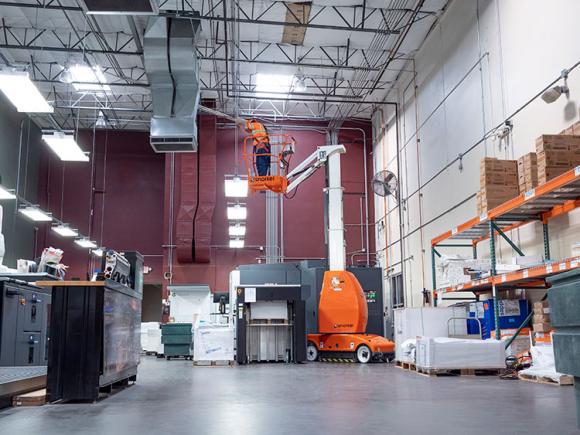

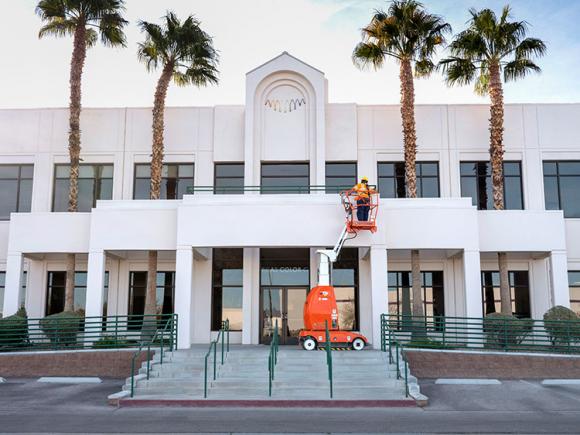

The Snorkel MB20J is a self-propelled electric mast boom lift fitted with a jib boom, which is ideal for working in compact spaces requiring ‘up and over’ capabilities. Fitted with non-marking tyres as standard.

Max Working Height
8.1m
Max Platform Height
6.1m

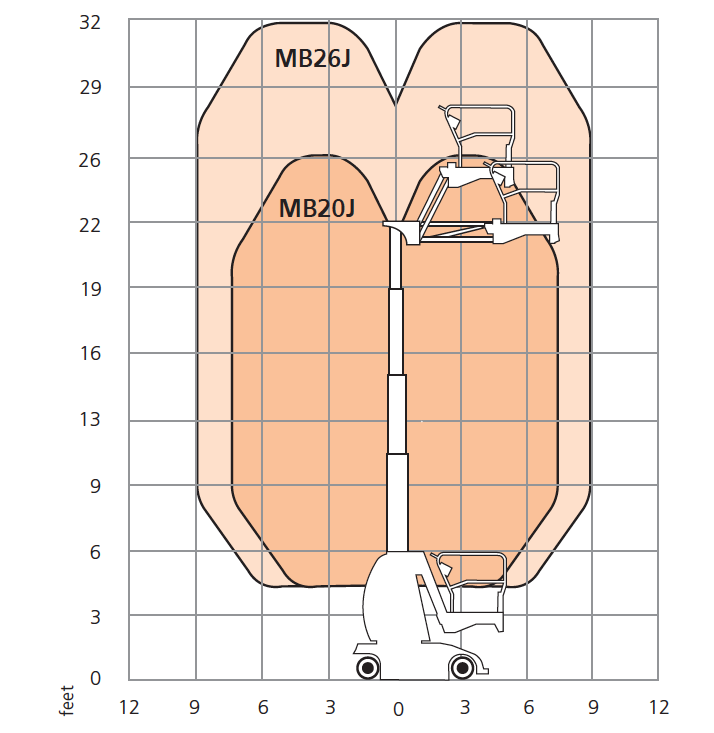

Max Working Outreach
2.6m

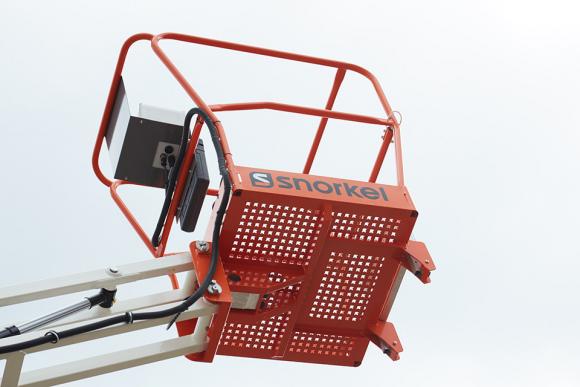

Platform Size
0.78m x 0.73m
Overall Width
0.81m
Stowed Length
2.41m
Stowed Height
1.98m
Ground Clearance
100mm
Platform Capacity (SWL)
215kg
Max Drive Height
6.1m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
3.2km/h
Max Drive Speed (elevated)
0.48km/h
Jib Length
1.02m
Jib Arc
130º
Mast Rotation
360º
Raise/Lower Time
54/26 sec
Gradeability
25%
Inside Turning Radius
0.3m
Outside Turning Radius
1.83m

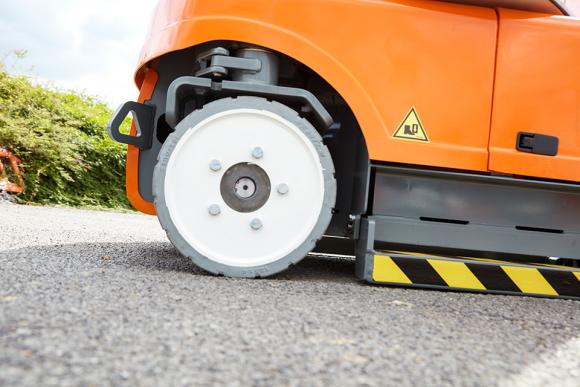

Tyres
323mm non-marking rubber
Controls
proportional controls
Drive System
electro/hydraulic
Power Source
4 x 6V x 375Ah batteries
Battery Charger
Self-seeking automatic battery charger
Weight
2,590kg
  • Ultra-tight inside turning radius
  • Proportional controls
  • Tilt alarm
  • Non-marking tyres

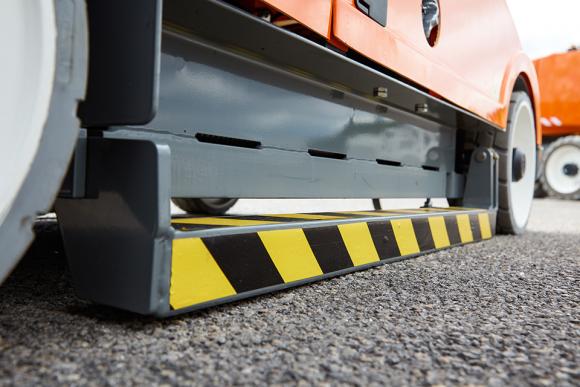

  • Hydraulic pothole protection system
  • 2 persons indoor
  • 1 person outdoor
  • Self-seeking automatic battery charger
  • Power line to platform

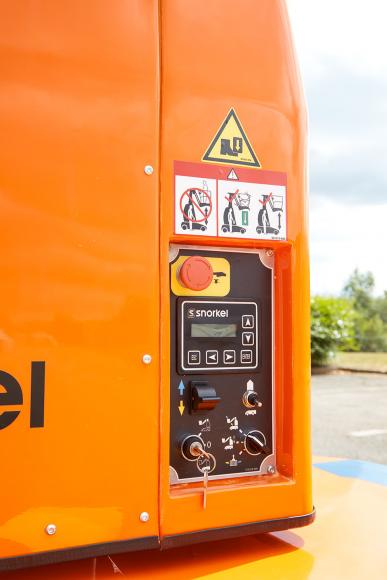

  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Environmental hydraulic oil
Flashing amber light
Snorkel OnSite™ Telematics
Special paint colours

Snorkel GuardTM Brochure (PDF)

English

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
