9.8m

Working Height

215kg

Platform Capacity

2,660kg

Weight

MB26J

The Snorkel MB26J is an electric mast boom lift which can lift 215kg to a working height of 9.8m. Fitted with a jib boom, the MB26J is highly maneuverable and is ideal for applications requiring ‘up and over’ capabilities, particularly in confined spaces.

Max Working Height
9.8m
Max Platform Height
7.8m

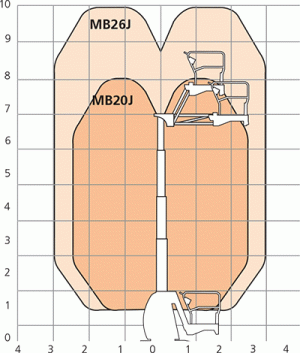

Max Working Outreach
3.0m
Platform Size
0.78m x 0.73m
Overall Width
1.0m
Stowed Length
2.8m
Stowed Height
1.98m
Ground Clearance
100mm
Platform Capacity (SWL)
215kg
Max Drive Height
7.75m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
3.2km/h
Max Drive Speed (elevated)
0.48km/h
Jib Length
1.4m
Jib Arc
130º
Mast Rotation
360º
Raise/Lower Time
56/27sec
Gradeability
25%
Inside Turning Radius
0.3m
Outside Turning Radius
2.1m
Tyres
323mm non-marking rubber
Controls
proportional controls
Drive System
electro/hydraulic
Power Source
4 x 6V x 375Ah batteries
Battery Charger
Self-seeking automatic battery charger
Weight
2,660kg
  • Ultra-tight inside turning radius
  • Proportional controls
  • Tilt alarm
  • Non-marking tyres
  • Hydraulic pothole protection system
  • 2 persons indoor
  • 1 person outdoor
  • Self-seeking automatic battery charger
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Environmental hydraulic oil
Flashing amber light
Snorkel OnSite™ Telematics
Special paint colors

Specifications (PDF)

中文 Deutsch English Français 日本語 Español

Snorkel GuardTM Brochure (PDF)

English

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

FIND A RESELLER
Add to Quote
VIDEO
Español
PHOTO GALLERY
Compact dimensions and zero emissions are ideal for indoor working, and a jib boom provides extra outreach when needed

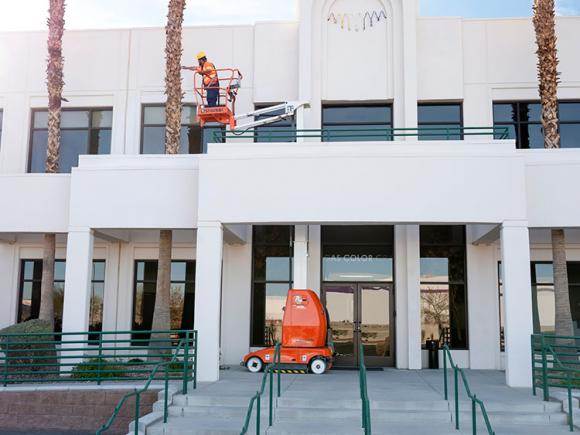

The Snorkel MB26J can be used indoors or outdoors for maximum flexibility

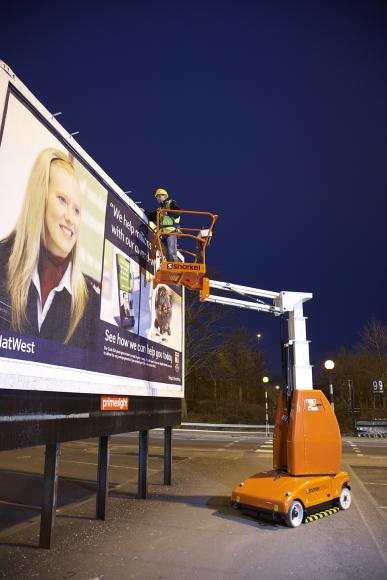

The MB26J can be used for both indoor and outdoor applications

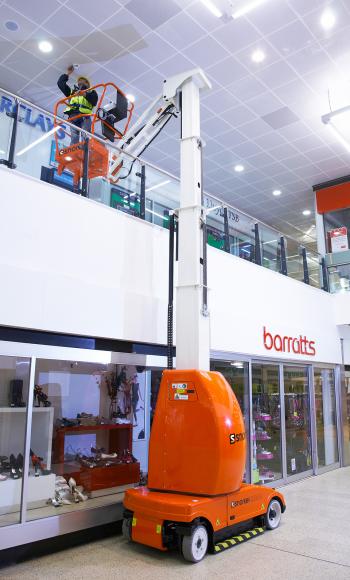

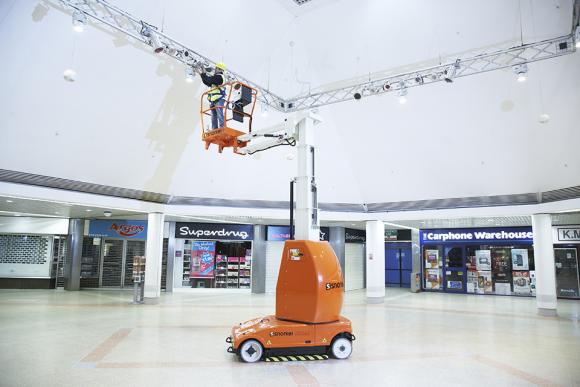

With a jib boom as standard, the Snorkel MB26J is ideal for interior up and over applications

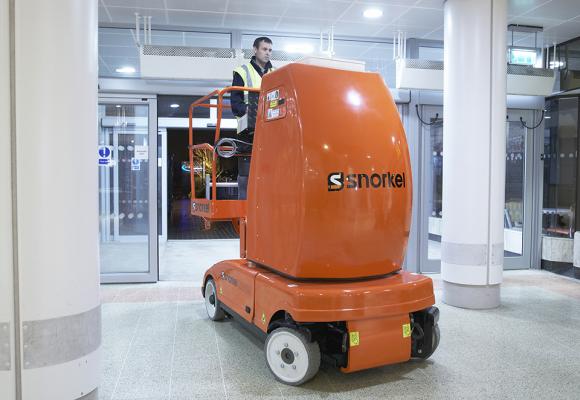

With compact stowed dimensions, the MB26J can pass through doorways with ease
The Snorkel MB26J can rotate up to 360 degrees for maximum accessibility at height without needing to reposition the chassis

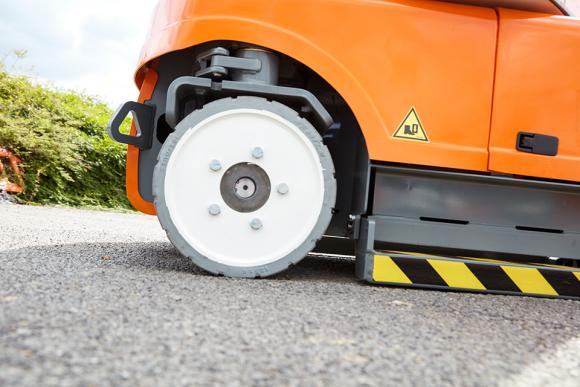

Non-marking tires are ideal for use on both outdoor slab and indoor surfaces

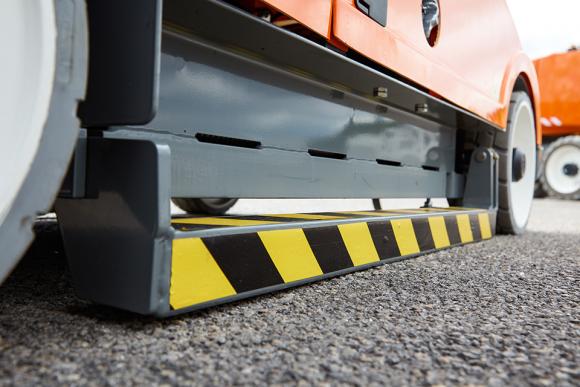

Pothole protection automatically deploys when the lift is elevated

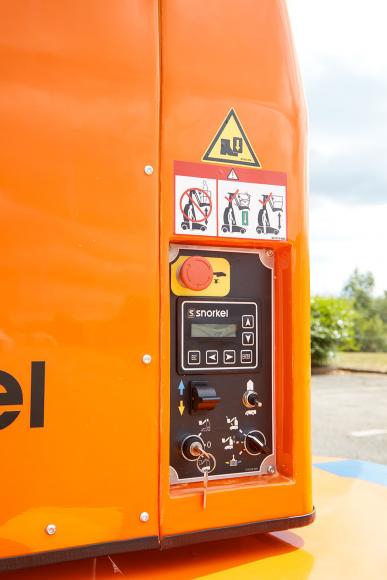

The lower control panel includes Snorkel's onboard diagnostics screen that is common across many Snorkel models

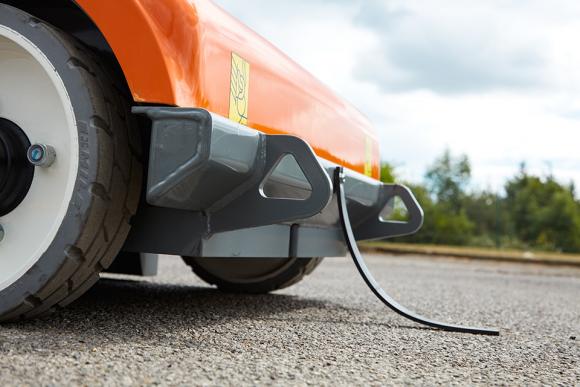

Heavy duty tie down points

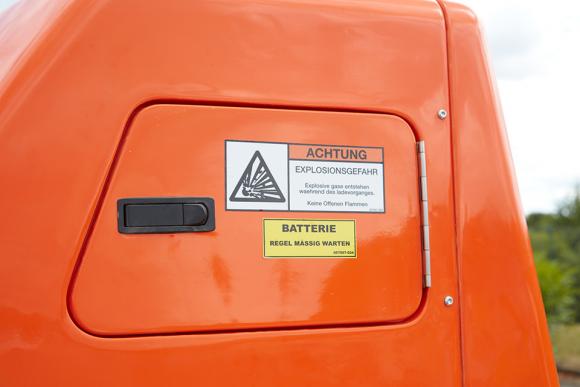

The MB26J features automatic battery fil

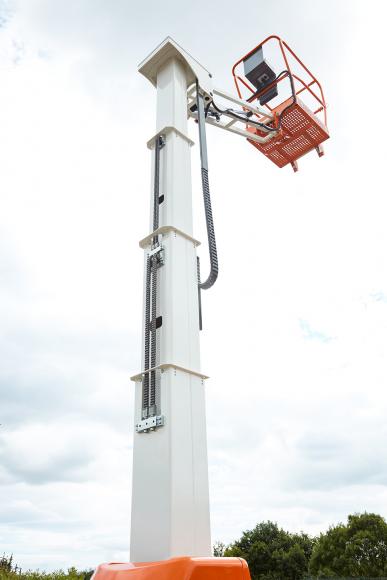

A robust telescopic mast delivers a stable working platform at height

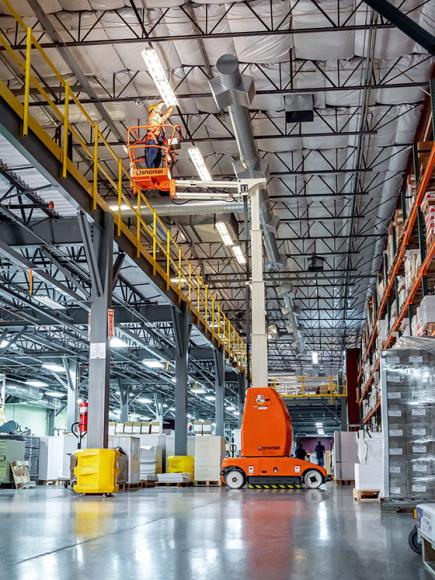

The MB26J can be used for both indoor and outdoor applications

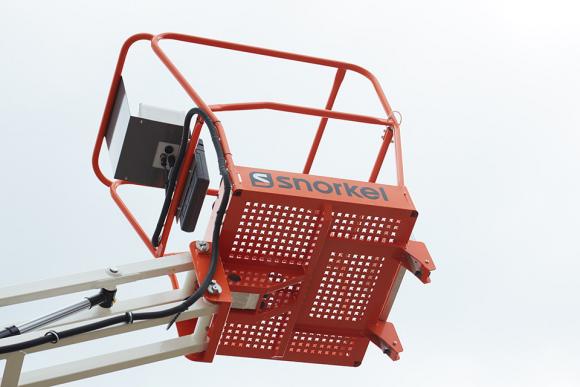

A perforated platform floor provides high grip in all conditions without the need to replace grip tape
