8.5m

Working Height

420kg

Platform Capacity

2,410kg

Weight

S2255RT

The Snorkel S2255RT is a narrow diesel scissor platform that provides excellent off-road performance. Thanks to the slim dimensions, it is ideally suited for access to and use in narrow areas of work. More platform space and additional reach are available via a roll-out platform extension.

Max Working Height
8.5m
Max Platform Height
6.5m
Platform Size (stowed)
1.4m x 2.73m
Platform Size (extended)
1.4m x 3.93m
Deck Extension
1.2m
Overall Width
1.45m
Overall Length
3.3m
Stowed Height
2.35m
Min Height (guardrails folded)
2.0m
Ground Clearance
260mm
Platform Capacity (SWL)
420kg
Max Drive Height
6.2m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
5.2km/h
Max Drive Speed (elevated)
0.66km/h
Raise/Lower Time
26/30 seconds
Gradeability
35%
Max Outrigger Leveling (front to rear)
6º
Max Outrigger Leveling (side to side)
10º

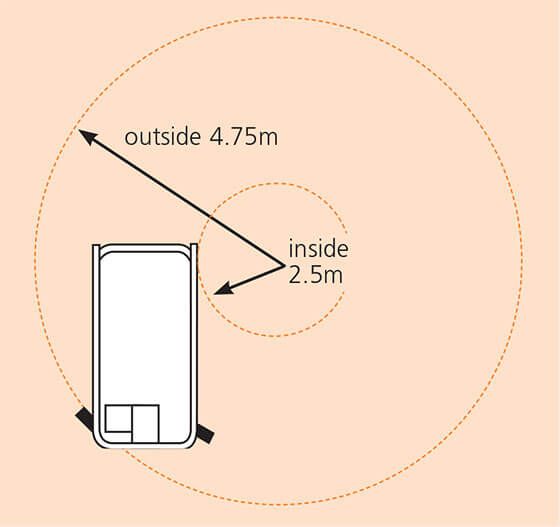

Inside Turning Radius
2.5m
Outside Turning Radius
4.75m
Exit/entry angle
20°
Tyres
0.58m x 0.22m – 12 non-marking
Controls
proportional joystick
Drive System
4 wheel drive
Power Source
Kubota diesel engine
Weight
2,410kg
  • 4-wheel drive
  • 4 hydraulic outriggers with automatic levelling
  • Roll-out deck extension
  • Proportional controls
  • Non-marking tyres
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Oscillating axle
  • Hour meter
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Cold Weather Package
Environmental hydraulic oil
Nylon spreader pads (set of 4)
Snorkel OnSite™ Telematics
Special paint colours

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

FIND A RESELLER
Add to Quote
VIDEO
Español
PHOTO GALLERY

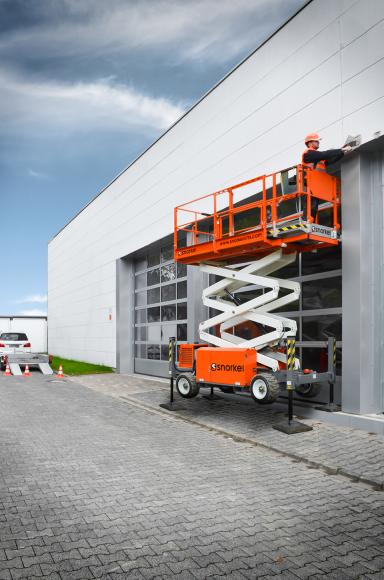

The Snorkel S2255RT features outriggers with automatic levelling as standard for ease of set-up on uneven ground

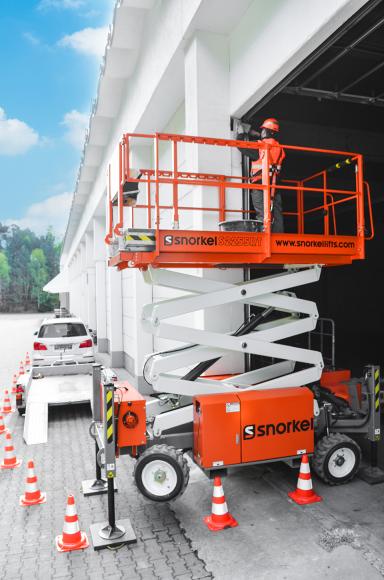

Fitted with non-marking, high grip tires as standard, the Snorkel S2255RT can work indoors or outdoors

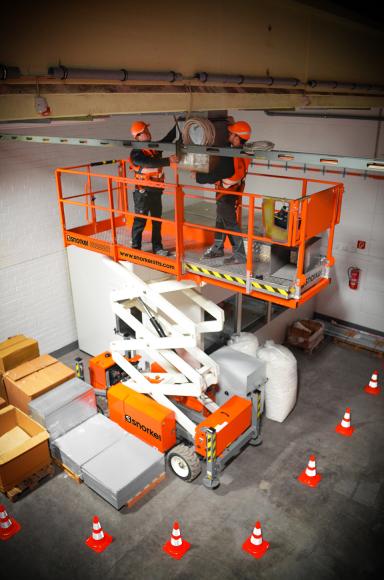

Capable of lifting two people with tools, the Snorkel S2255RT has a spacious working platform from comopaact dimensions
The Snorkel S2255RT features outriggers with automatic levelling as standard for ease of set-up on uneven ground
