REQUEST A QUOTE
8.5m

Working Height

420kg

Platform Capacity

2,410kg

Weight

S2255RTE

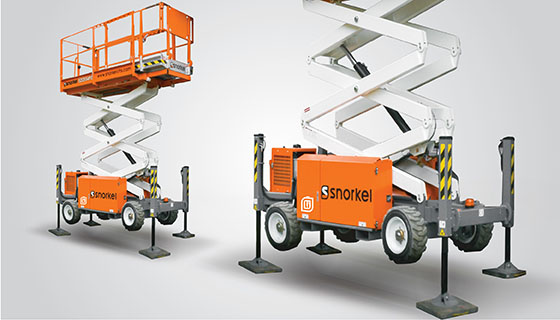

The Snorkel S2255RTE is an electric narrow rough terrain scissor lift equipped with long-lasting lithium batteries. The quiet performance means it is suitable for indoor and outdoor use without sacrificing power. Its ultra-narrow width and low weight allows this scissor lift to be easily towed on a tandem trailer.

Max Working Height
8.5m
Max Platform Height
6.5m
Platform Size (stowed)
1.4m x 2.73m
Platform Size (extended)
1.4m x 3.93m
Deck Extension
1.2m
Overall Width
1.45m
Overall Length
3.3m
Stowed Height
2.35m
Min Height (guardrails folded)
2.0m
Ground Clearance
260mm
Platform Capacity (SWL)
420kg
Max Drive Height
6.2m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
5.2km/h
Max Drive Speed (elevated)
0.66km/h
Raise/Lower Time
26/30 seconds
Gradeability
35%
Max Outrigger Leveling (front to rear)
6º
Max Outrigger Leveling (side to side)
10º
Inside Turning Radius
2.5m
Outside Turning Radius
4.75m
Exit/entry angle
20°
Tyres
0.58m x 0.22m – 12 non-marking
Controls
proportional joystick
Drive System
4 wheel drive
Power Source
11.5kWh Li-ion batteries with integrated BMS
Operating temperature
(-) 25º C to (+) 60º C
Charger
high frequency smart on-board 50A battery charger
Motor
AC electric motor
Weight
2,410kg
  • Two lithium-ion battery systems 11.5kWh
  • 4-wheel drive
  • 4 hydraulic stabilizers with automatic levelling
  • Roll-out deck extension
  • Proportional controls
  • Non-marking foam filled tyres
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Oscillating axle
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Hour meter
  • 2000 charging cycles/2 year** lithium battery warranty
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

**whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional 5.75kWh battery system
Environmental hydraulic oil
Nylon spreader pads (set of 4)
Snorkel OnSite™ Telematics
Special paint colours

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
