S3010P

The Snorkel S3010P is an innovative push-around mini scissor lift, which provide a cost-effective way to safely work at low level heights indoors.

Designed to withstand the demands of construction sites and the rental industry, the Snorkel S3010P is a heavy-duty and robust mini scissor lift, which is easy to use and simple to maintain. The S3010P can lift 240kg to a working height of 5.0m.

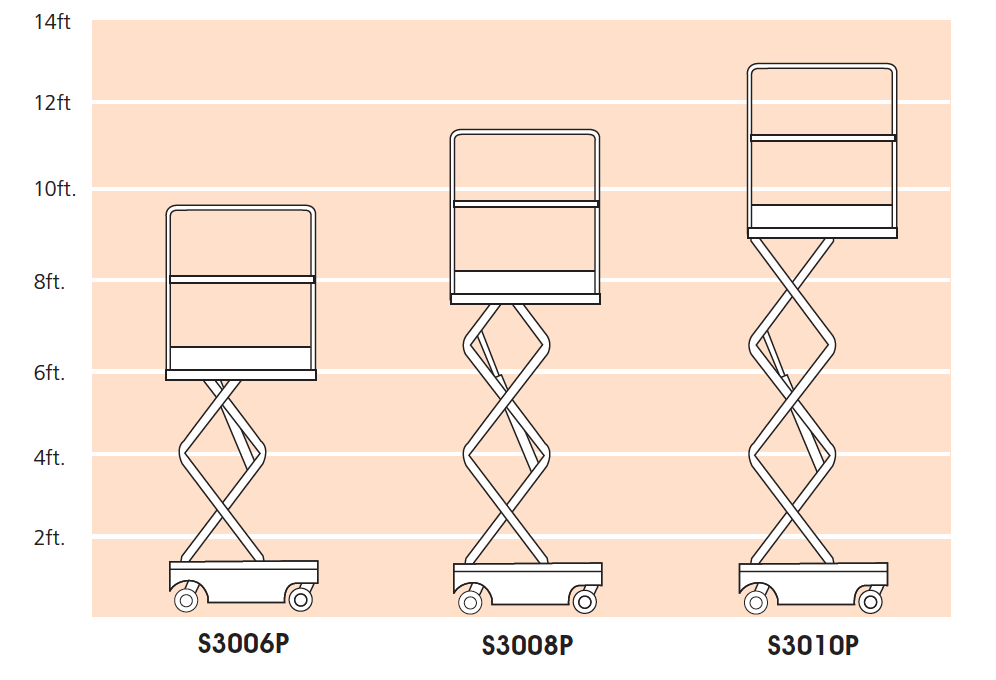

Max Working Height
5.0m
Max Platform Height
3.0m
Platform size (outside)
1.1m x 0.52m
Overall Width
0.75m
Overall Length
1.2m
Stowed Height
1.8m
Platform Capacity (SWL)
240kg
Max Wind Speed
0m/s
Raise/Lower Time
19/26 seconds
Power Source
12V DC battery
Charger
Built in multi-voltage (90V – 240V)
Weight
370kg
  • Auto brake system
  • Tilt sensor
  • Saloon-door style entry gates
  • Integrated battery charger 90V – 240V
  • Battery charge indicator
  • Forklift pockets
  • Emergency lowering system
  • Non-marking casters
  • Slide-out service trays
  • 2 year parts & labor, 5 year structural warranty
Environmental hydraulic oil
Snorkel OnSite™ Telematics
Special paint colours

Dual Capacity Comparison Flyer

English Español

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

FIND A RESELLER
Add to Quote
VIDEO
Español
PHOTO GALLERY

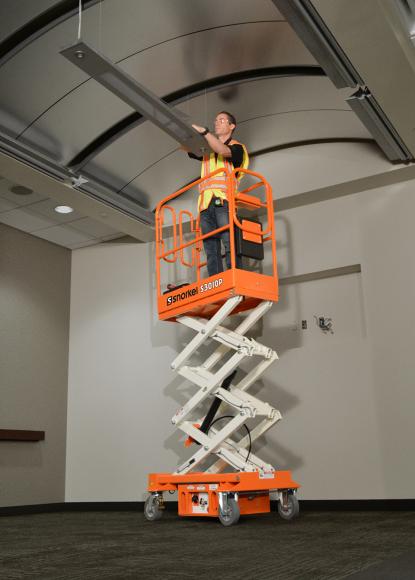

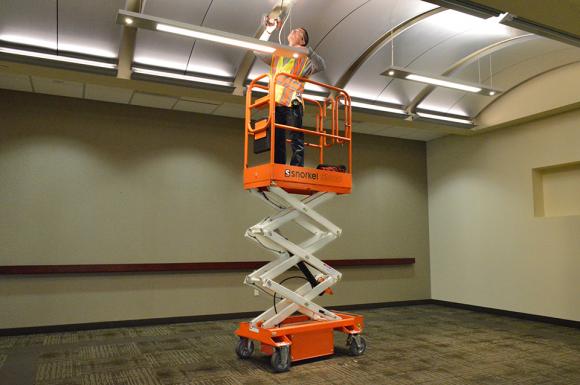

The Snorkel S3010P is designed for all types of facilities maintenance appliations, even in multi-story buildings, as it can be carried in passenger elevators and pushed through standard doorways.
The spacious platform provides room to carry tools and materials to the work area

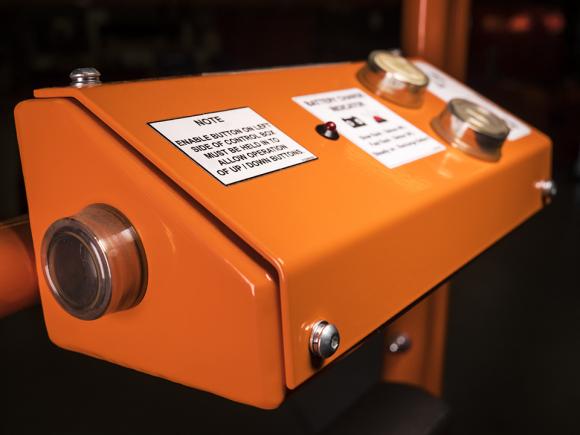

The all-steel upper control panel with easy access to all controls
The orange emergency lowering handle is easily accessible on the scissor stack when the lift is elevated

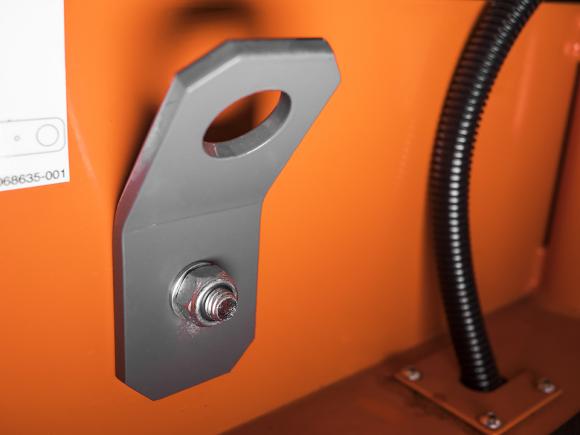

Lanyard attachment points in the platform enable easy movement for the operator

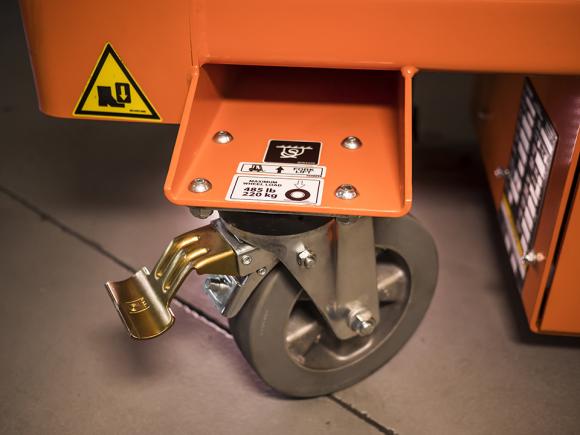

Non-marking casters are suitable for all floor types, and the footbrake enables the stowed lift to be easily secured in place

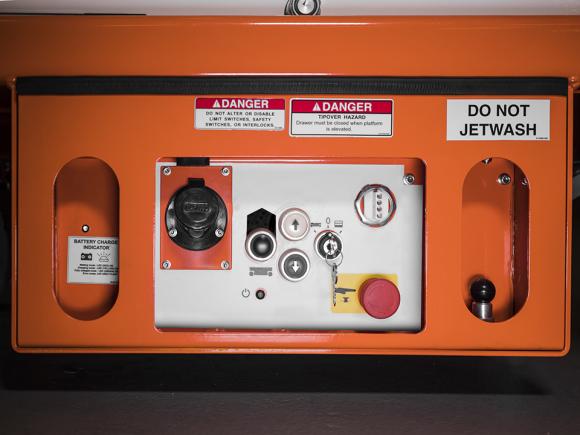

Recessed lower panel protects the controls from damage and provides easy access

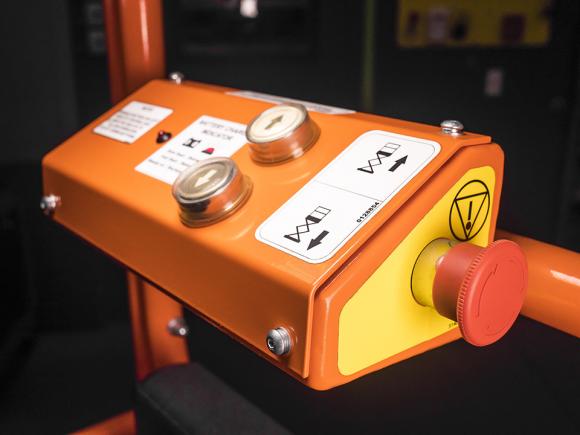

Simple, push-button controls to elevate and lower the lift are intuitive to all operators, no matter their experience

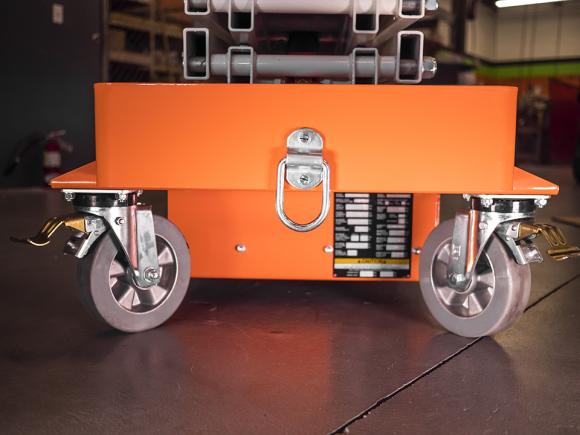

obust, oversized tie-down points make light work of securing the lift on transport
