REQUEST A QUOTE
6m

Working Height

272kg

Platform Capacity

794kg

Weight

S3013 MINI

Designed to address specific needs in the low-level scissor lift market, the S3013 Mini electric drive scissor lift is suitable for indoor and outdoor use and fits through a standard doorway. A roll-out deck extension and 600 lb maximum platform capacity make this model ideal for two people or one person plus materials. A deep-cycle 24V DC battery and non-marking solid rubber tires enable clean and quiet indoor use.

Max Working Height
6m
Max Platform Height
4m
Platform Size (stowed)
0.75m x 1.32m
Platform Size (extended)
0.75m x 1.93m
Deck Extension Length
0.61m
Overall Length (with step)
1.44m
Overall Length (without step)
1.39m
Overall Width
0.76m
Stowed Height
1.85m
Min Height (guardrails folded)
1.59m
Ground Clearance (stowed)
66mm
Ground Clearance (elevated)
16mm
Platform Capacity (SWL)
272kg
Max Drive Height
5.79m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
4.0km/h
Max Drive Speed (elevated)
0.8km/h
Raise/Lower Time
20 / 35 seconds
Gradeability
25%
Inside Turning Radius
0.13m
Outside Turning Radius
1.47m
Tyres
322.58mm x 101.6mm non-marking solid rubber
Controls
Proportional
Drive System
2 wheel electric drive
Power Source
24V DC battery electric
Charger
90 – 240V, 25amp
Weight
794kg



  • Fully electric drive
  • Fully electric steer
  • Zero inside turning radius
  • No hydraulic hoses
  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoors
  • 1 person outdoors
  • Proportional controls, including descent
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Platform overload system
  • Flashing amber strobe
  • ANSI A92.20 compliant
  • Largest tires / wheels in its class
  • Heavy-duty spindles and steering mechanism
  • Robust aluminum fixed control box
  • Crane & forklift points
  • Lanyard attachment points
  • 2 year parts & labor, 5 year structural warranty
No options associated with this product.

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

FIND A RESELLER
Add to Quote
VIDEO
Español
PHOTO GALLERY

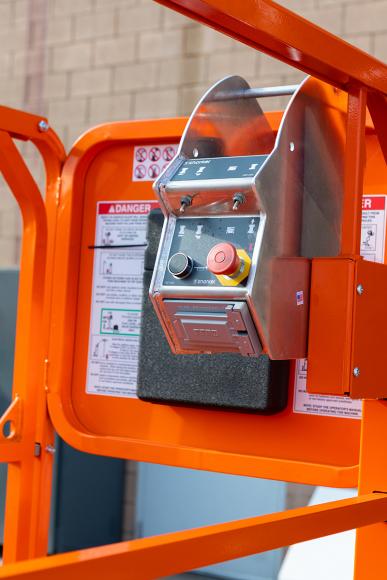

S3013 Mini Controls

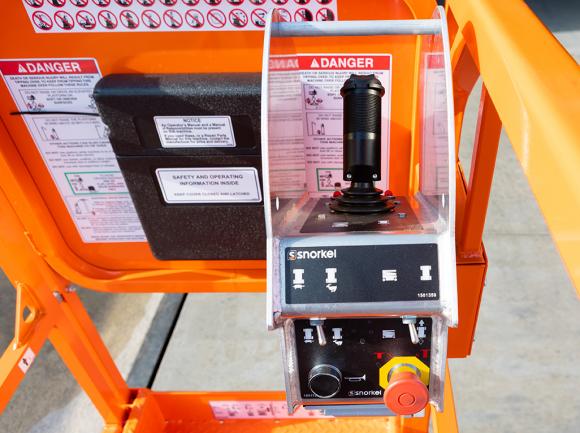

S3013 Mini Controls

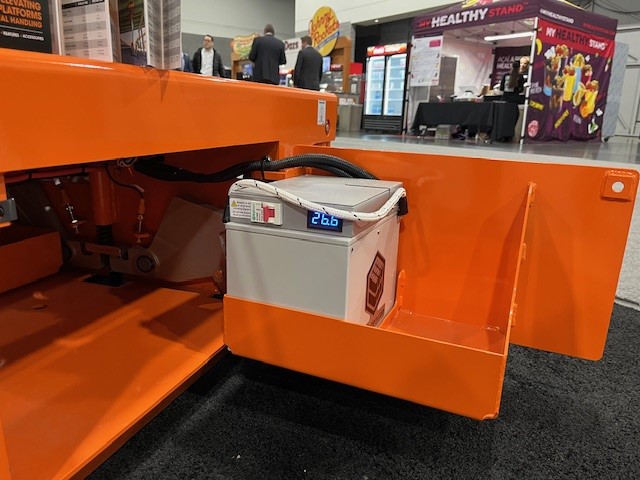

Battery Door S3013 Mini 3-11-24
