REQUEST A QUOTE
13.8m

Working Height

350kg

Platform Capacity

4,090kg

Weight

S3970BE

The Snorkel S3970BE is a compact scissor lift which can be operated on either its diesel engine, for outdoor rough terrain work, or switched to DC electric for working indoors. Fitted with high grip, non-marking types as standard, the S3970BE provides the ultimate in jobsite flexibility.

Max Working Height
13.8m
Max Platform Height
11.8m
Platform Size (stowed)
1.6m x 2.8m
Platform Size (extended)
1.6m x 4.0m
Deck Extension
1.2m
Overall Width
1.8m
Stowed Length
3.4m
Stowed Height
2.95m
Min Height (guardrails folded)
2.13m
Ground Clearance
330mm
Platform Capacity (SWL)
350kg
Max Drive Height
11.8m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
4.5 km/h
Max Drive Speed (elevated)
0.3 km/h
Raise/Lower Time
50/60 seconds
Gradeability
25%
Max Outrigger Leveling (front to rear)
6º
Max Outrigger Leveling (side to side)
10º
Inside Turning Radius
2.7m
Outside Turning Radius
5.0m
Tyres
27 x 10.5 foam filled, non-marking
Controls
proportional joystick
Drive System
4 wheel drive
Power Source
Kubota D-902 water cooled diesel 22.5 hp – Tier 4 Final & 4 x 6v 305Ah batteries
Weight
4,090kg
  • DC and diesel power – for indoor & outdoor work
  • 4-wheel drive
  • 4 hydraulic outriggers with automatic levelling
  • Roll-out deck extension
  • Non-marking tyres
  • Proportional controls
  • Flashing amber light
  • Oscillating axle
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Hour meter & on-board diagnostics display
  • Dual lanyard attachment points
  • Manual lowering valve
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Cold Weather Package
Environmental hydraulic oil
Hydraulic generator 110V/240V
Nylon spreader pads (set of 4)
Snorkel OnSite™ Telematics
Special paint colours
Snorkel-S2770RTE-S3370RTE-S3970RTE-Turning-Radius

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

FIND A RESELLER
Add to Quote
VIDEO
Español
PHOTO GALLERY

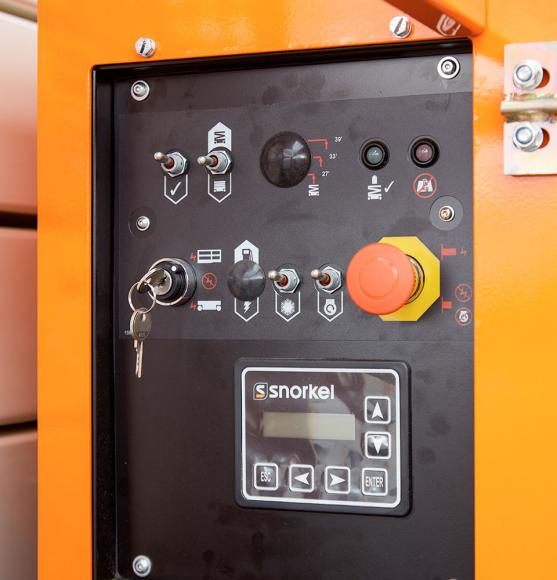

The lower control panel is recessed into the side module to protect it from damage and debris
Non-marking, high grip tires comes as standard
Auto-leveling outriggers, fitted as standard, are protected in steel when stowed to prevent damage
Large, heavy-duty steel tie-down and crane lifting points
A heavy-duty diamond plate steel step enables easy access to the platform, yet is tough enough to handle the demands of the jobsite and rental industry
Twin-door side modules provide easy acces to all key components for service and maintenance
Forklift points are built into the chassis for maximum stability and a long working life
Non-marking, high grip tires are designed to provide the performance you need in outdoor terrain, yet leave no trace on concrete slab and other sensitive ground types
A diamond plate slide-out deck extends the working area, without the need for grip tape - a common replacement item
The lower control panel is recessed into the side module to protect it from damage and debris
The upper control box features proportional joystick control with Snorkel™ trigger guard
Snorkel trigger guard fits directly onto the joystick and provides an additional level of protection over the enable switch to reduce the likelihood of involuntary movement, without affecting normal operation of the controls
