REQUEST A QUOTE
13.8m

Working Height

350kg

Platform Capacity

3,790kg

Weight

S3970RTE

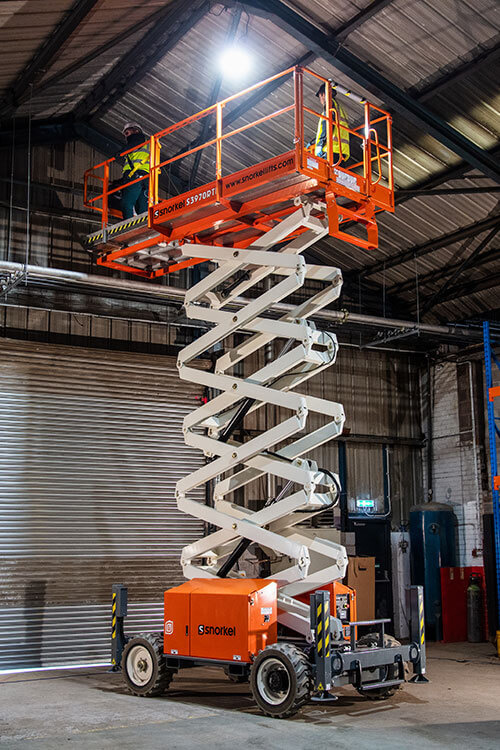

The Snorkel S3970RTE compact rough terrain electric scissor lift delivers dynamic performance. Equipped with long-lasting lithium-ion batteries, this scissor lift offers clean and quiet operation. A compact design makes it easy to maneuver tight areas and powerful 4-wheel drive tackles tough terrain.

Max Working Height
13.8m
Max Platform Height
11.8m
Platform Size (stowed)
1.6m x 2.8m
Platform Size (extended)
1.6m x 4.0m
Deck Extension
1.2m
Overall Width
1.8m
Overall Length
3.4m
Stowed Height
2.95m
Min Height (guardrails folded)
2.13m
Ground Clearance
330mm
Platform Capacity (SWL)
350kg
Max Drive Height
11.8m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
4.5 km/h
Max Drive Speed (elevated)
0.5 km/h
Raise/Lower Time
50/60 seconds
Gradeability
35%
Max Outrigger Leveling (front to rear)
6º
Max Outrigger Leveling (side to side)
10º

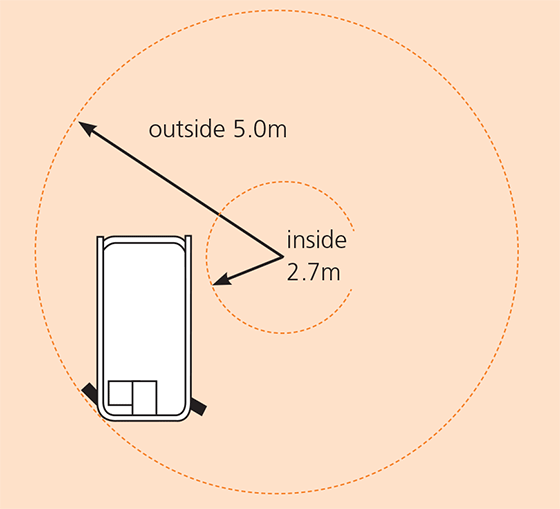

Inside Turning Radius
2.7m
Outside Turning Radius
5.0m
Tyres
27 x 10.5 15 foam filled, non-marking
Controls
proportional joystick
Drive System
4 wheel drive
Power Source
11.5kWh Li-ion batteries with integrated BMS
Operating temperature
(-)25°C to (+)60°C
Charger
high frequency smart on-board 50A battery charger
Motor
AC electric motor
Weight
3,790kg
  • Two lithium-ion battery systems 11.5kWh
  • 4-wheel drive
  • Roll-out deck extension
  • 4 hydraulic stabilizers with automatic levelling
  • Non-marking foam filled tyres
  • Proportional controls
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light
  • Oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2000 charging cycles/2 year** lithium battery warranty
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

**whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional 5.75kWh battery system
Environmental hydraulic oil
Nylon spreader pads (set of 4)
Snorkel OnSite™ Telematics
Special paint colours
Snorkel-S2770RTE-S3370RTE-S3970RTE-Turning-Radius

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
