REQUEST A QUOTE
9.5m

Working Height

6,500kg

Platform Capacity

11,090kg

Weight

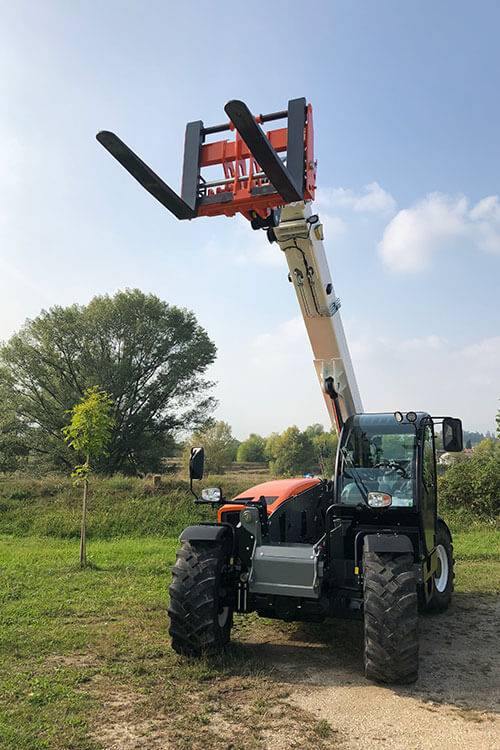

SR1065

The new Snorkel SR1065 rough terrain telehandler offers robust reliability. A high lift capacity maximizes performance, and a compact design makes it manoeuvrable on the jobsite. Equipped with 4-wheel drive, power assisted steering and a frame leveling system, this telehandler delivers power and precision with great handling capacities.
Max. lift capacity
6,500kg
Max. lift height
9.5m
Max. forward reach
5.4m
Overall Width
2.3m
Stowed Height
2.5m
Length to fork face
6.45m
Wheelbase
2.9m
Ground Clearance
410mm
Max. drive speed
40km/h
Raise/Lower Time
20 / 14 seconds
Frame levelling
10°
Hydraulic flow (per minute)
100L
Hydraulic pressure
230bar
Hydraulic oil capacity
150L
Fuel capacity
120L
Outside Turning Radius
4.5m
Tyres
445/65 R22.5˝
Power Source
Deutz TCD 74.5kW Stage V / Tier 4 Final diesel
  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Fender (4)
  • Fully enclosed cab with heat
  • Proportional joystick controls
  • Adjustable steering column
  • Illuminated gauge and switch panels
  • Colour LCD display with machine & engine diagnostics
  • Adjustable suspension seat
  • Flashing beacon
  • Fixed 1500mm carriage & 1500mm floating forks
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Additional rear mirror
Air conditioning
Bluetooth radio, handsfree & USB socket
Boom suspension & floating boom
Cab front glass protection grille
Engine preheater 220V
Fixed tow hook 6 ton
Front & rear LED work lights (4)
Grammer air suspension seat
Heated right external mirror
Snorkel OnSite™ Telematics
Special paint colours
Sun curtain
Work lights on boom (2)

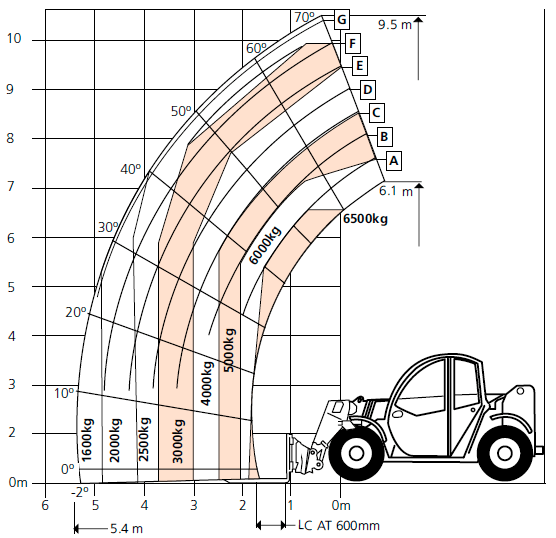

Snorkel-SR1065-Load-Chart

Dual Capacity Comparison Flyer

English Español

Specifications (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Snorkel GuardTM Brochure (PDF)

English

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
