5.79m

Working Height

2,600kg

Platform Capacity

4,700kg

Weight

SR626

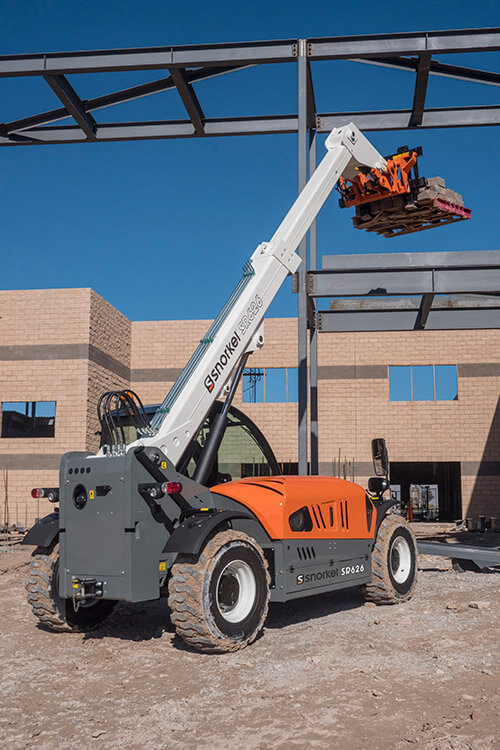

The Snorkel SR626 compact rough terrain telehandler delivers top performance in a compact design. Featuring full-time 4-wheel drive, power assisted steering and proportional joystick, the telehandler is packed with power and precision to lift materials in any application.
Max. lift capacity
2,600kg
Max. lift height
5.79m
Max. forward reach
3.2m
Overall Width
1.89m
Stowed Height
1.93m
Length to fork face
4.19m
Wheelbase
2.5m
Ground Clearance
220mm
Max. drive speed
27km/h
Raise/Lower Time
6.9 / 5 seconds
Hydraulic flow (per minute)
70L
Hydraulic pressure
230bar
Hydraulic oil capacity
70L
Fuel capacity
80L
Outside Turning Radius
3.25m
Tyres
12 x 16.5
Power Source
Yanmar 52kW Stage V diesel
  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated
  • Selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Variable speed hydrostatic drive
  • Fully enclosed cab with heat
  • Proportional joystick
  • Illuminated gauge and switch panels
  • Colour LCD display with machine & engine diagnostics
  • Flashing beacon
  • Fixed 1200mm carriage with 1200mm floating forks
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Additional rear mirror
Air conditioning
Bluetooth radio, handsfree & USB socket
Boom suspension & floating boom
Cab front glass protection grille
Engine preheater 220V
Euro coupling
Fixed tow hook 6 ton
Front & rear LED work lights (4)
Grammer air suspension seat
Heated right exterior mirror
Non-marking tyres 12-16.5
Snorkel OnSite™ Telematics
Special paint colours
Sun curtain
Work lights on boom (2)

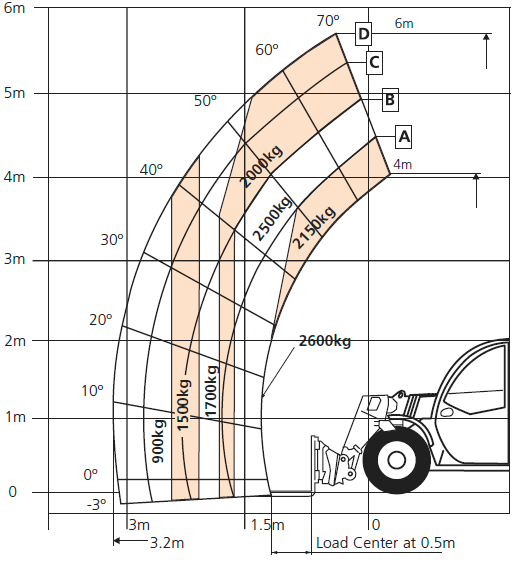

SR626-load-chart

Dual Capacity Comparison Flyer

English Español

Specifications (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Snorkel GuardTM Brochure (PDF)

English

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.
