5.79m

Working Height

2,600kg

Platform Capacity

4,800kg

Weight

SR626E

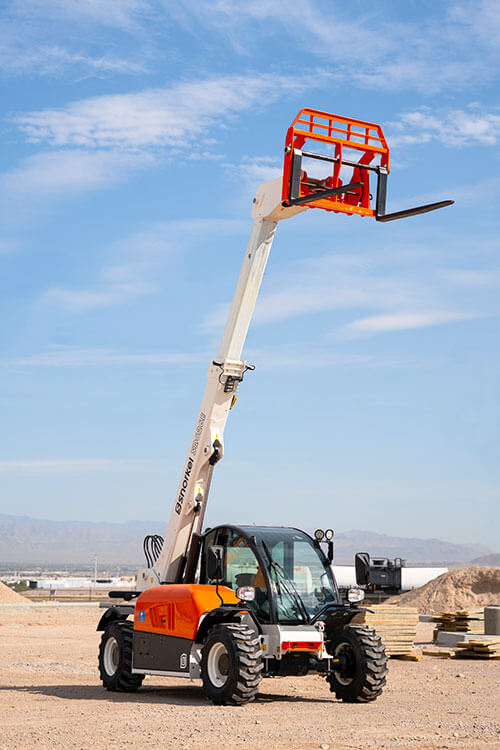

The SR626E is the electric version of the SR626 rough terrain telehandler – an industry first. Its full-time 4-wheel drive is powered by lithium-ion batteries for long-lasting durable performance. Built compact, the SR626E is highly maneuverable with reduced noise and zero emissions that is suitable for indoor use.
Max. lift capacity
2,600kg
Max. lift height
5.79m
Max. forward reach
3.1m
Overall Width
1.89m
Stowed Height
1.93m
Length to fork face
4.19m
Wheelbase
2.5m
Ground Clearance
220mm
Max. drive speed
12km/h
Raise/Lower Time
6.9 / 5 seconds
Hydraulic flow (per minute)
80L
Hydraulic pressure
230bar
Hydraulic oil capacity
70L
Outside Turning Radius
3.25m
Tyres
12 x 16.5
Power Source
Lithium-ion 80V 32kWh batteries
Operating temperature
(-)20ºC to (+)45ºC
Charger
on-board, single phase
  • Lithium-ion batteries
  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated
  • Auxiliary hydraulic circuit on the boom
  • Fully enclosed cab with heat
  • Proportional joystick
  • Illuminated gauge and switch panels
  • Adjustable suspension seat
  • Fixed 1200mm carriage & 1200mm floating forks
  • 2000 charging cycles/2 year lithium battery warranty
  • 2 year parts & labour, 5 year structural warranty
  • CE approved

Whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional rear mirror
Air conditioning
Bluetooth radio, handsfree & USB socket
Boom suspension & floating boom
Cab front glass protection grille
Engine preheater 220V
Fixed tow hook 6 ton
Front & rear LED work lights (4)
Grammer air suspension seat
Heated right external mirror
Snorkel OnSite™ Telematics
Special paint colours
Sun curtain
Work lights on boom (2)

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Snorkel GuardTM Brochure (PDF)

English

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
