16.7m

Working Height

200kg

Platform Capacity

5,269 lbs

Weight

TL49J

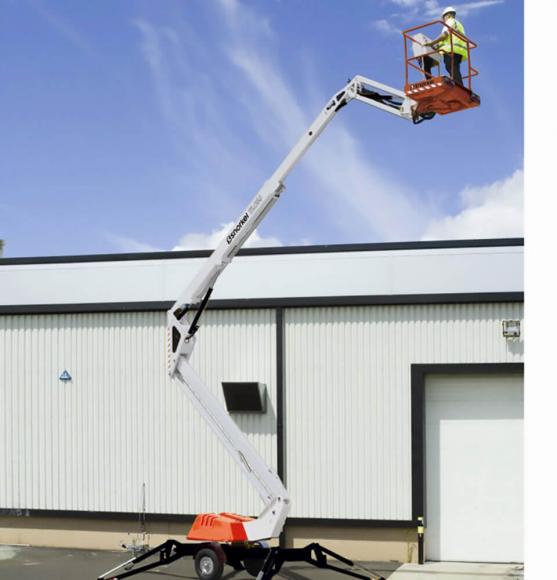

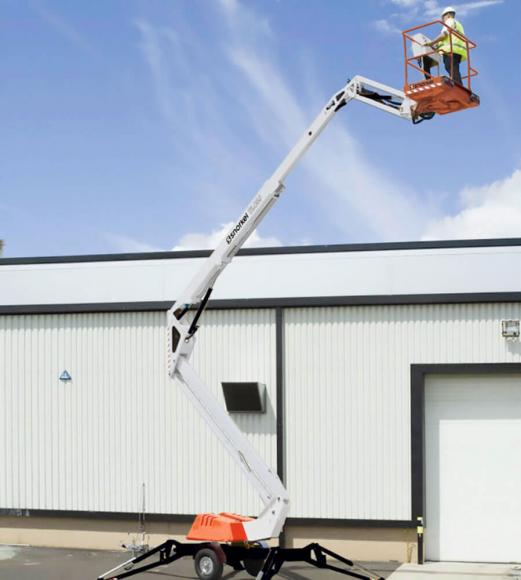

With an articulating/telescopic boom and jib, this the our most flexible trailer mounted boom lift designed to be incredibly robust and reliable. Bi-energy version available.

Max Working Height
16.7m
Max Platform Height
14.7m
Max Working Outreach
8.5m
Platform Width
1.14m
Platform Depth
0.7m
Outrigger Footprint
4.8m x 4.7m
Towing Width
1.72m
Towing Length
7.1m
Stowed Height
2.16m
Platform Capacity (SWL)
200kg
Max Wind Speed
12.5m/s
Jib Length
1.3m
Jib Arc
130º
Platform Rotation
90º
Turret Rotation
680° non-continuous
Wheels
205/75R16

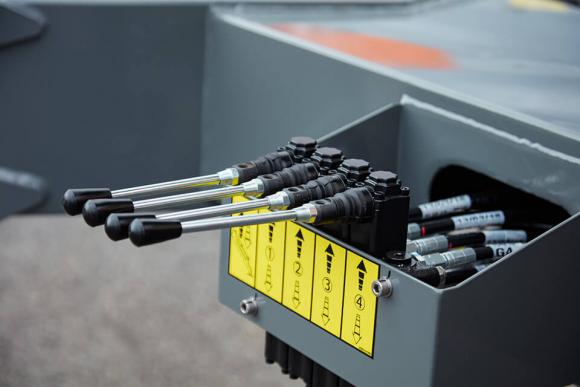

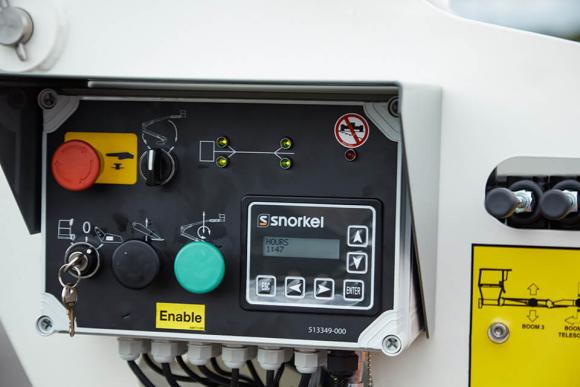

Controls
hydraulic proportional
Power Source
24V DC battery

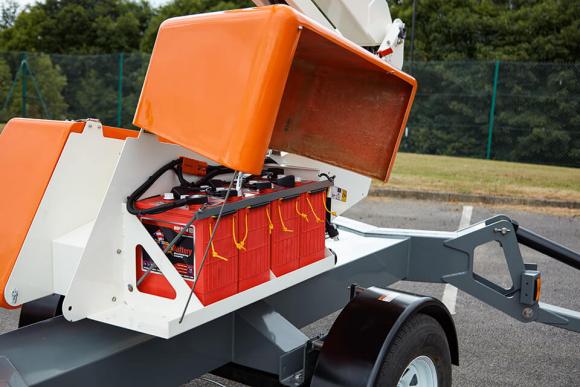

Battery
4 x 6V 195Ah
Power Options
dual fuel, bi-energy, AC power, petrol engine
Weight
2,389kg

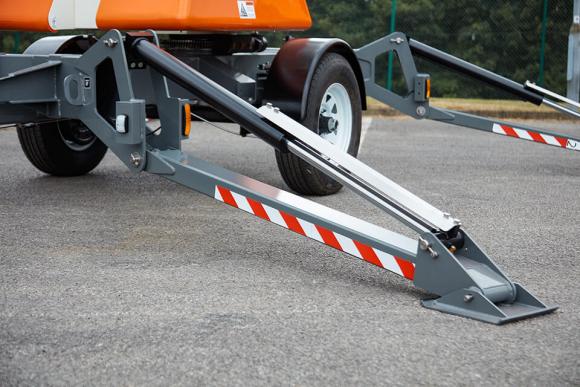

  • Hydraulic outriggers
  • In-line boom design for maximum rigidity
  • Hand pump emergency lowering from platform
  • Lock valves on all hydraulic cylinders

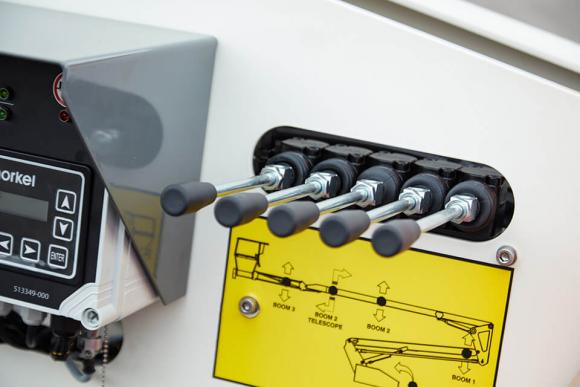

  • Proportional live hydraulic controls
  • Integral road lighting board
  • Power line to platform
  • Dual lanyard attachment points
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Airline to platform
Environmental hydraulic oil
Flashing amber light
Friction Drive Assist Package
Nylon spreader pads (set of 4)
Snorkel OnSite™ Telematics
Special paint colours
Work lights in platform

Specification Sheet (Imperial)

English Français Español

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
