TM12E
5.65m

Working Height

227kg

Platform Capacity

1,016kg

Weight

TM12E

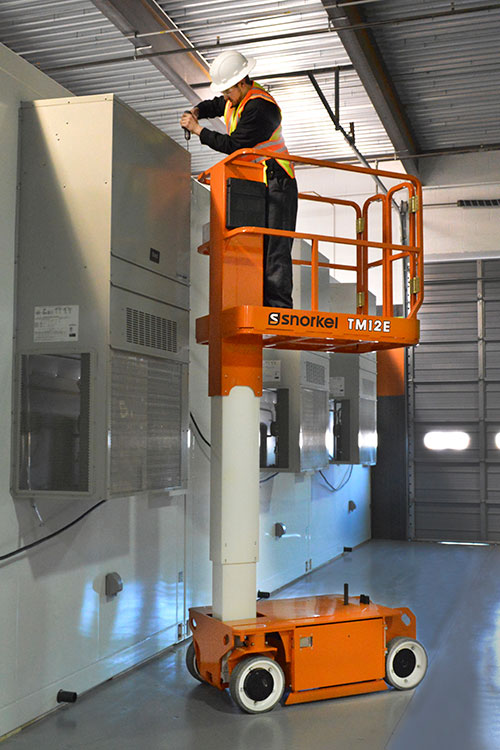

The Snorkel TM12E is an electric drive version of the original Snorkel TM12 hydraulic drive telescopic mast lift. The Snorkel TM12E features an efficient electric drive system that delivers longer duty cycles, a zero inside turning radius, and a new electric braking system. Capable of lifting up to 500 lbs. (227kg) to a platform height of up to 12 ft. (3.65m), the TM12E includes a roll-out deck extension as standard, plus a new upper control box with an integrated power to platform outlet, that is common with Snorkel’s electric slab scissor lift family.

Max Working Height
5.65m
Max Platform Height
3.65m
Platform Size (stowed)
0.68m x 0.99m
Platform Size (extended)
0.68m x 1.5m
Extension Deck Length
0.51m
Overall Width
0.76m
Overall Length
1.37m
Stowed Height
1.7m
Ground Clearance
76mm
Platform Capacity (SWL)
227kg
Max Drive Height
3.65m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
4.0km/h
Max Drive Speed (elevated)
0.6 km/h
Raise/Lower Time
19 / 17 seconds
Gradeability
25%
Max Operating Slope (side to side)
Max Operating Slope (front to back)

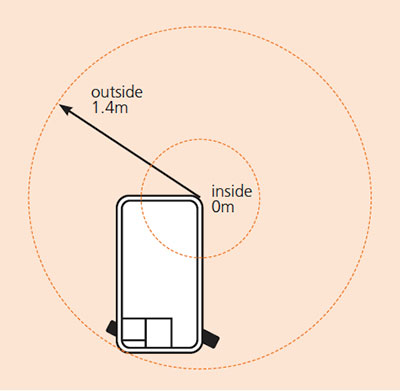

Inside Turning Radius
0m
Outside Turning Radius
1.4m
Tyres
323mm non-marking rubber
Parking Brake
2 wheel, spring applied, electric release
Drive System
dual DC motors
Controls
proportional
Power Source
24V 220Ah batteries
Battery Charger
20 AMP
Weight
1,016kg
  • Roll-out deck extension
  • Proportional controls
  • Saloon-door style entry gates
  • Descent & tilt alarms
  • Emergency lowering at chassis controls
  • Non-marking rubber tyres
  • Crane lift points
  • Horn
  • 2 persons indoor
  • 1 person outdoor (TM12E only)
  • Selectable motion alarm
  • Integrated battery charger 110V 20A
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Environmental hydraulic oil
Order picker tray
Snorkel OnSite™ Telematics
Special paint colours
