9.6m

Working Height

159kg

Platform Capacity

390kg

Weight

UL25

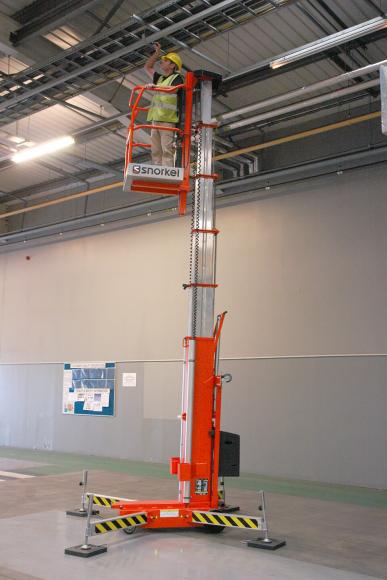

The Snorkel UL25 push-around mast lift is a lightweight and low cost indoor work platform. Designed with a small footprint and outriggers as standard, one person can easily set up and operate the UL25 for quick access.

Max. working height
9.6 m
Max. platform height (A)
7.6 m
Platform length
0.56 m
Platform width
0.66 m

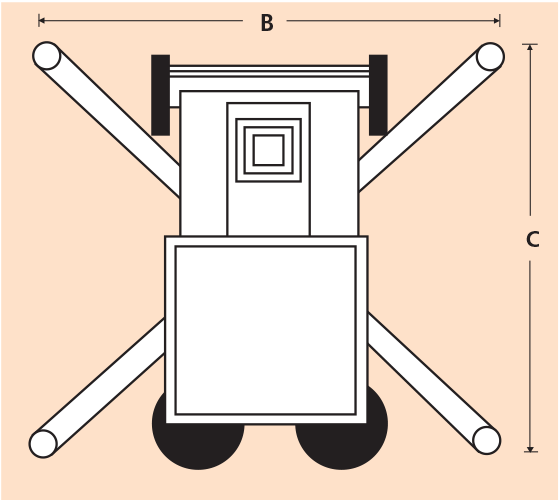

Outrigger footprint (B x C)
2.06 m x 1.99 m
Overall width (F)
0.74 m
Overall length (D)
1.26 m
Stowed height (E)
1.99 m
Tilt back height (G)
1.95 m
Tilt back length (H)
2.6 m
Platform capacity (SWL)
159 kg
Max. wind speed
0 m/s
Raise/lower time
43/23 sec
Wheels
250 mm x 64 mm rear, 150 mm casters front
Controls
Push button
Wall access
356 mm
Power source (AC)
120/220V AC 50HZ
Power source (DC)
1 x 12V 105Ah battery
Battery charger (DC)
Integrated
Weight (AC)
390 kg
Weight (DC)
420 kg

• Patented Girder Lock telescopic mast system

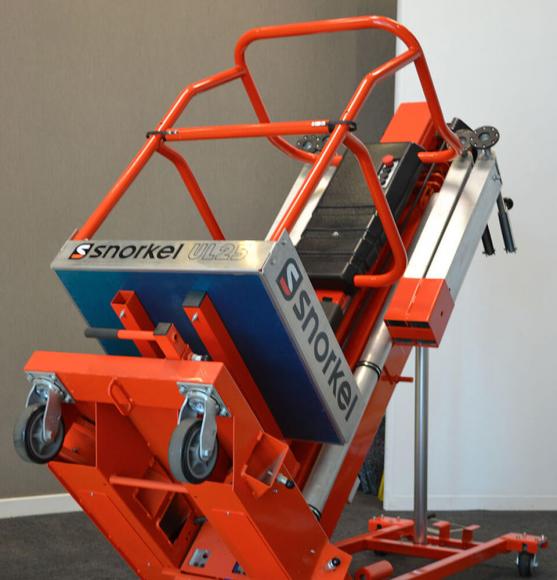

• Integrated tilt-back system
• Ground level entry
• EZ loader system for transport

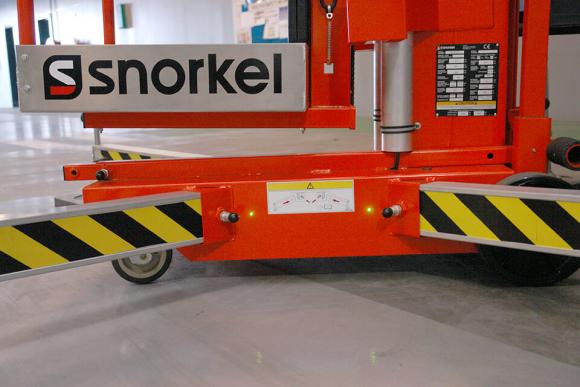

• Outrigger interlock indicators
• Integrated battery charger (DC only)
• Non-marking wheels and casters
• 2 year parts & labour, 5 year structural warranty
• CE approved

Environmental hydraulic oil
Laser locator
Special paint colours
Tool tray
