Snorkel-UL40
14.1m

Working Height

136kg

Platform Capacity

470kg

Weight

UL40

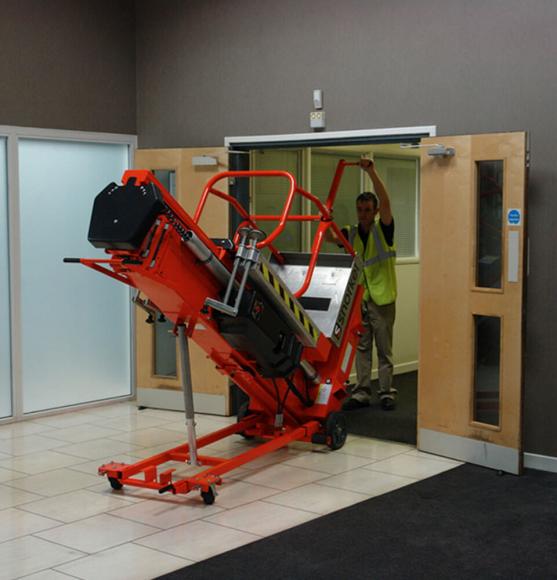

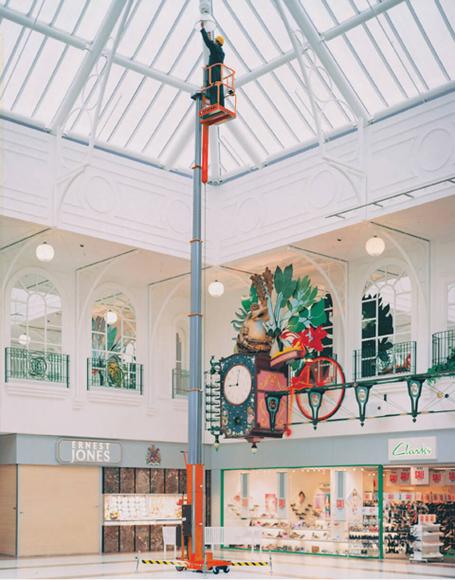

The Snorkel UL40 is the largest personnel lift in the range. This robust push-around mast lift, safely lifts one person plus tools to a working height of 14.1m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system. The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL40 is ideal for interior maintenance, particularly in sports hall, auditoriums, atriums and shopping malls.

Max. Working Height
14.1m
Max. platform height (A)
12.1m
Platform Length
0.56m
Platform Width
0.66m

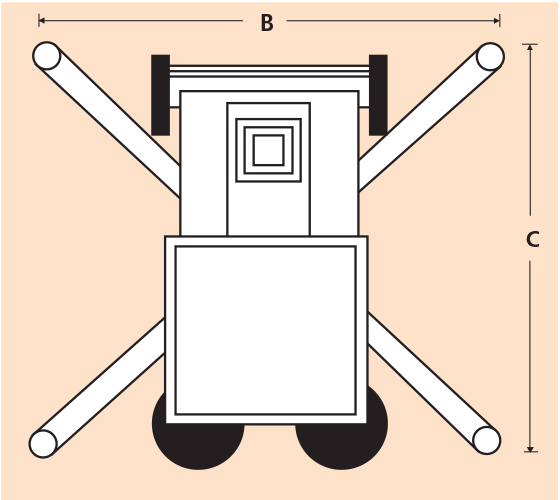

Outrigger footprint (B x C)
2.95m x 2.85m
Overall width (F)
0.74m
Overall length (D)
1.32m
Stowed height (E)
2.9m
Tilt back height (G)
2.0m
Tilt back length (H)
2.99m
Platform Capacity (SWL)
136kg
Max. Wind Speed
0m/s
Raise/Lower time
60/40 seconds
Wheels
250mm x 64mm rear, 150mm casters front
Controls
push button
Wall Access
736mm
Power Source (AC)
120/220V AC 50HZ
Power Source (DC)
1 x 12V 105Ah battery
Battery charger (DC)
integrated
Weight (AC)
470kg
Weight (DC)
500kg
  • Patented Girder Lock telescopic mast system

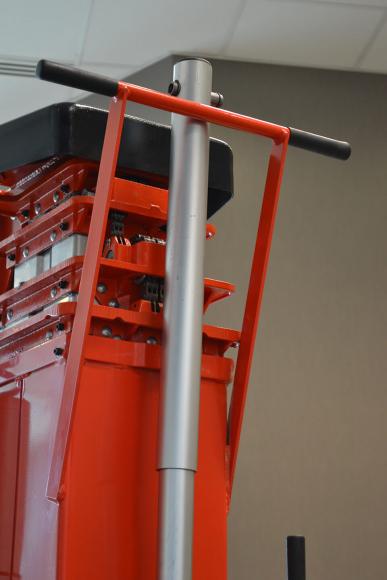

  • Integrated tilt-back system
  • Ground level entry
  • EZ loader system for transport

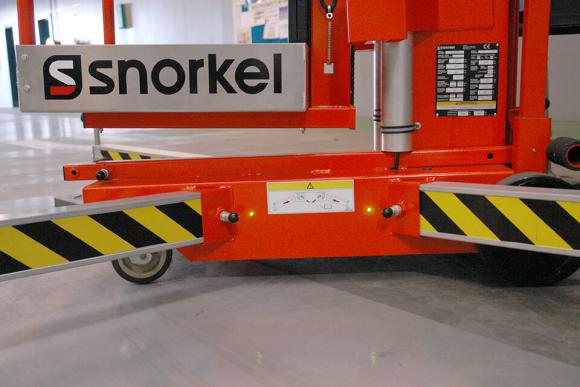

  • Outrigger interlock indicators
  • Integrated battery charger (DC only)
  • Non-marking wheels and casters
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Environmental hydraulic oil
Laser locator
Special paint colours
Tool tray
